Harken 311 Drahtseilblock 2" Scheibe mit Hochlast Komposit Lager. Aluminium mit PTFE Beschichtung
Sheave Ø (mm)51 mm
Sheave Ø (in)2 in
Width (mm)10 mm
Width (in)13/32 in
Weight (g)43 g
Weight (oz)1.5 oz
Center pin Ø (mm)8.1 mm
Center pin Ø (in)5/16 in
Maximum line Ø (mm)6 mm
Maximum line Ø (in)1/4 in
Maximum wire Ø (mm)5 mm
Maximum wire Ø (in)3/16 in
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb

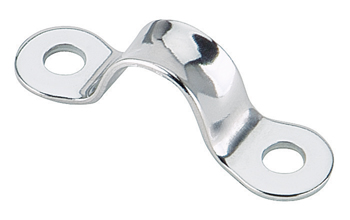

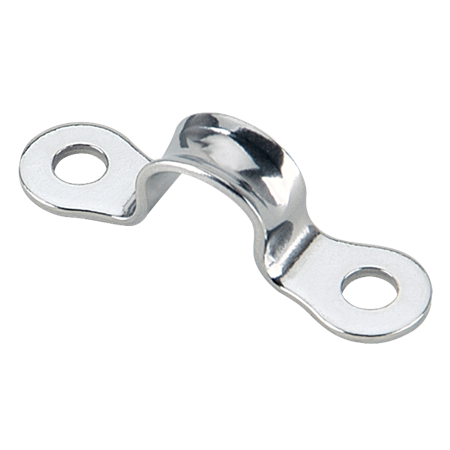

Augbügel
A (mm)43 mm
A (in)1 11/16 in
B (mm)12 mm
B (in)1/2 in
C (mm)32 mm
C (in)1 1/4 in
D (mm)11 mm
D (in)7/16 in
E (mm)10 mm
E (in)3/8 in
F (in)7/16 in
F (mm)11 mm
Weight (g)4.5 g
Weight (oz).16 oz
Fasteners (mm)5 mm
Breaking load (kg)726 kg
Breaking load (lb)1600 lb
